• AirLogix® is an advanced control solution for centrifugal air compressors. Built on the Allen-Bradley family of PLCs we’ve developed a solution that delivers unmatched results. AirLogix® optimizes energy efficiency, increases reliability, and promotes system visibility through data and integration. Each controller we build is custom, engineered specifically for each application, and done with nearly unlimited capabilities.

AirStarPD™ is built on the Allen Bradley MicroLogix PLC platform and designed to meet all NEC standards. Components are housed in a standard NEMA 12 enclosure, offering eight standard analog inputs, fourteen digital inputs, plus ten digital outputs. No proprietary hardware is provided. For peace of mind, the HMI serves as the operator interface for all machine control functions, all set-point entry, as well as all system monitoring that includes live data and historical data with event logs.

• The controls provided with Sullair TS32/25 series compressors use a microprocessor to control the inlet and spiral-valve via mechanical/pneumatic pressure regulators. The problem is that this control scheme requires regular cleanings and fine tuning to operate efficiently. Pneumatic devices use hot, wet, unconditioned air straight off the top of the separator lid. Shuttle valves stick, regulators clog, control-line filters clog and auto-drains fill with rust and condensate. This need for continuous maintenance is the weak link

AirStarDC™ completely automates the dryer, cycling based on demand for energy management. Well conceived, straight forward screens provide the operator with detailed machine performance information. The screens provide the tools needed to troubleshoot, along with adding additional I/O components to the system.

AirMaster™PD circumvents the need to replace the existing local third-party OEM proprietary control system for each compressor. This makes AirMaster™PD extremely versatile and effective for all types of scenarios and compressor rooms making it the go-to platform for systems requiring additional automation beyond the compressor itself.

AirMaster3PX™ circumvents the need to replace the existing local third-party OEM proprietary control system for each compressor by utilizing 3rd Party eXchange. This makes AirMaster3PX™ extremely versatile and effective for all types of scenarios and compressor rooms making it the go-to platform for systems requiring additional automation beyond the compressor itself. A few examples include multiple header management, cooling water control, and dryer integration into the overall architecture.

AirMaster is a PLC software solution loaded into each local controller that will automatically start, stop and throttle multiple compressors for the greatest energy savings without sacrificing reliability.
AirMaster™ is a “true load-sharing” solution that manages multiple air compressors of different types, models, sizes, and manufactures by integrating them into one master control architecture.

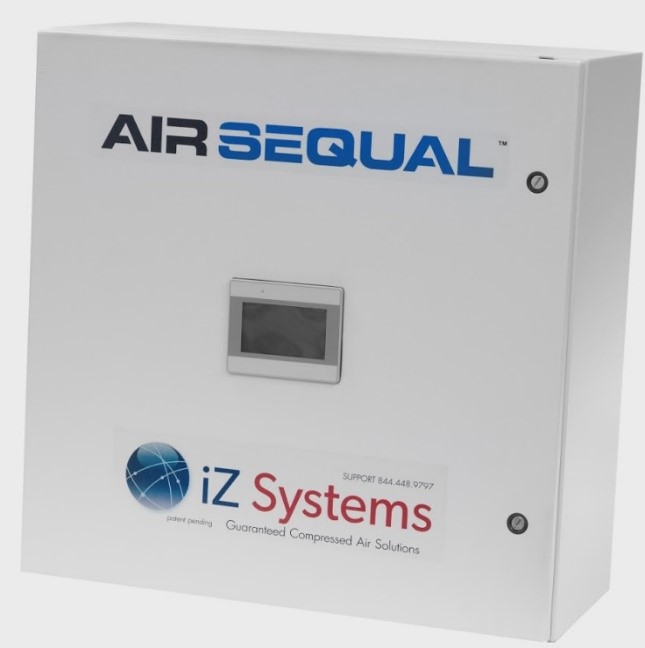

AirSequal™ is an Allen Bradley PLC based control system designed to automate 2-6 air compressors of various sizes, makes, and models. AirSequal™ is a supervisory level control system and interfaces to the OEM local control system through hardwired discrete inputs and outputs. The OEM control system protects the individual compressors as it does today. The PLC brings obvious advantages of flexibility, availability and serviceability by a number of resources. The copyrighted software or “source code” (part of which is known as ladder logic) is the property of iZ/Case. It is licensed to users for installation and use on a single compressed air system.

AirView Cloud provides comprehensive and simple energy monitoring and system health awareness of the compressed air and cooling water systems. Historical Trending will also provide insights into the compressed air system performance over time. AirView Cloud is a great tool to assist with root cause analysis of system issues and events.
